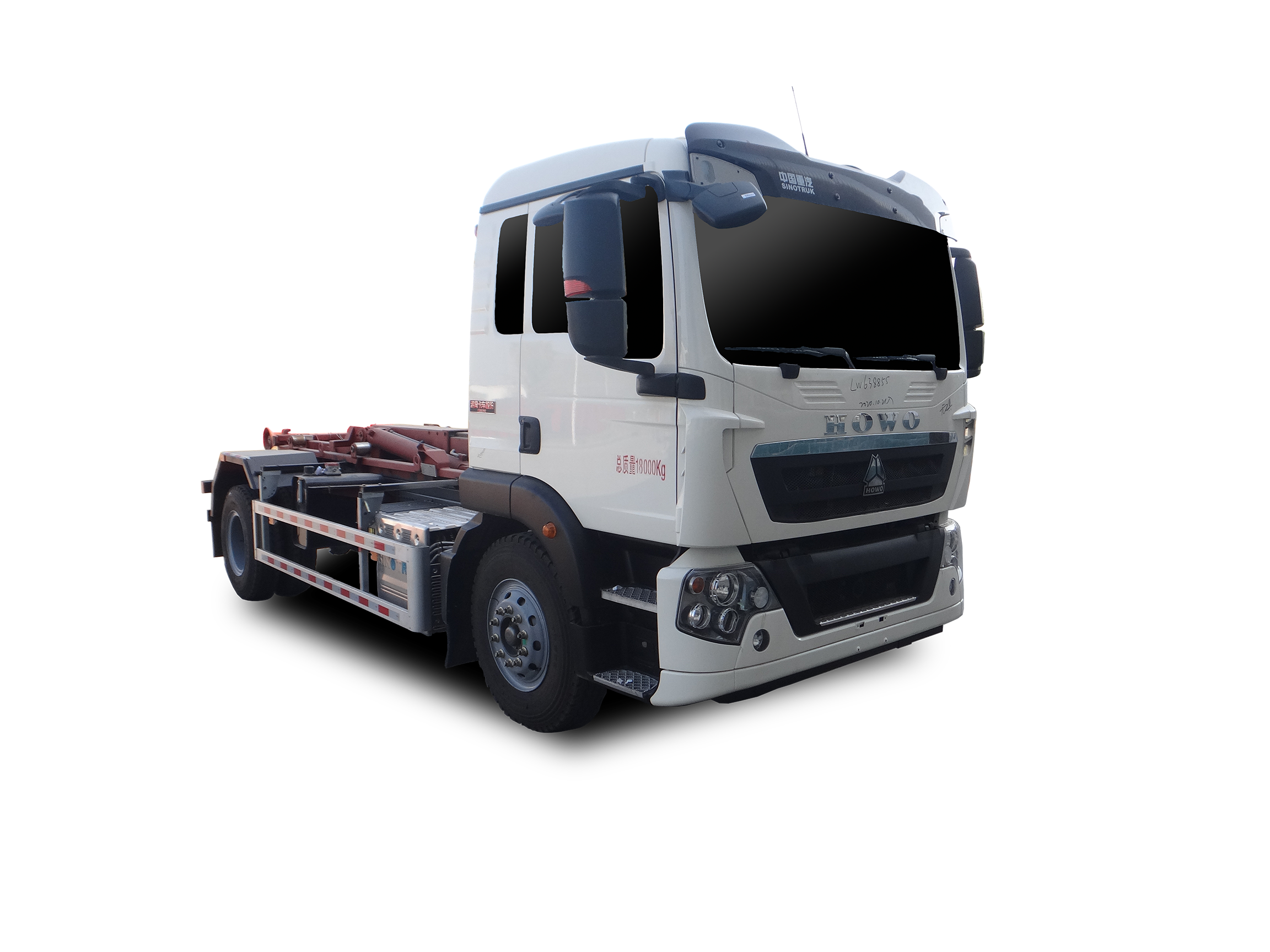

HOWO-TX container-detachable garbage truck
Vehicle descriptive introduction: The “Qingzhuan” container-detachable garbage truck is one garbage transfer truck matched for garbage transfer stations and is mainly used to transfer the compressed household garbage compacted by the garbage transfer stations in sealed manner to the garbage disposal sites. The superstructure adopts hooklift superstructure of renowned brand and can be matched with containers of different dimensions and applications to realize one vehicle for multiple cycled applications. The key components are designed with high strength steel plates and are protected by multiple electric interlocks to guarantee safety and reliability. The loading and unloading of the container and the unloading of garbage can be completed by the driver alone on the vehicle or outside of the vehicle and this product is one new environmental-friendly garbage transfer truck with simple and reliable operations.
Technical parameter
Maximum pull-up force (T) | 14 |
Superstructure hook center height (mm) | 1570 |
Container hookup time (s) | ≤45 |
Container lowering time (s) | ≤55 |
Self-dumping time (s) | ≤55 |
Control mode of hydraulic system | Manual/electric integrated |
Reversing valve | Multi-way directional valve |
Vehicle specification
Product model | QDZ5180ZXXZHTX45F1 |
Chassis model | ZZ1187K501GF1 |
Gross weight (kg) | 18000 |
Overall dimensions (mm) | 7180×2520×2980,3070 |
Wheelbase (mm) | 4500 |
Engine model (kw) | MC07.25-60 |
